STEAM HOSE LL
TUBE: Black, EPDM
REINFORCEMENT: Single braided high tensile yarn
COVER: EPDM
TEMP RANGE: -40°C to +185°C Approx
APPLICATIONS: For saturated steam applications that can be resisted up to 185°C.
PROPERTIES: High Temperature | Uniform Thickness |Flexible
APPLICABLE STANDARDS: IS 10655 Type I
STANDARD COLOUR: Inner Tube - Black | Outer Cover -Black
MARKING ON THE HOSE: Indo- Maksson - Stream Line Steam Hose
I.D. W.P. Made in India
STEAM HOSE 2W
TUBE: Black, EPDM
REINFORCEMENT: Double braided high tensile steel wire
COVER: Black, EPDM
TEMP RANGE: -40°C to +220 °C Approx
APPLICATIONS: For saturated steam applications which can be resisted up to 220°C
PROPERTIES: High Temperature | Highly Flexible Uniform Thickness
APPLICABLE STANDARDS: IS 10655 Type III
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Steam Hose Type 3
I.D. W.P. Made in India
STEAM HOSE 1W
TUBE: Black, EPDM
REINFORCEMENT: Single braided high tensile steel wire
COVER: Black, EPDM
TEMP RANGE: -40°C to +185°C Approx
APPLICATIONS: For saturated steam applications which can be resisted up to 185°C.
PROPERTIES: High Temperature | Flexible | Uniform Thickness
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Steam Hose Type 2
I.D. W.P. Made in India

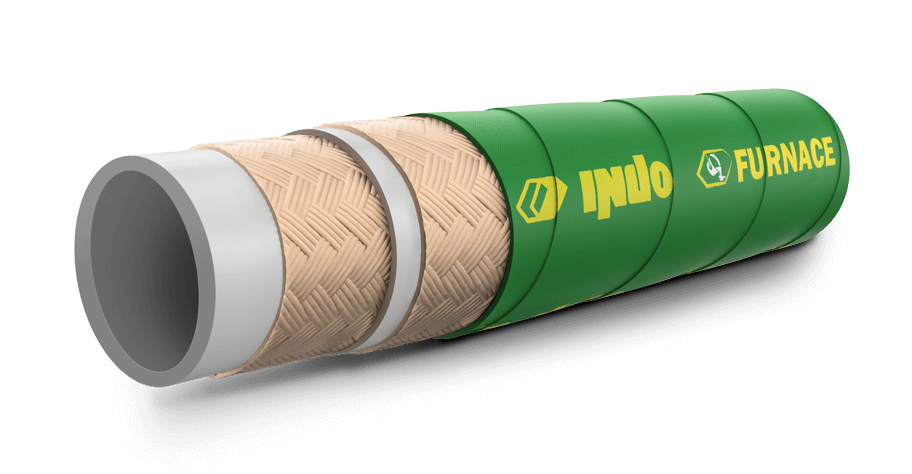

CARBON FREE HOSE LL
TUBE: Specially engineered non-conductive rubber, white
REINFORCEMENT: One or Multiple layers of Textile reinforced subjected to ID
COVER: Specially engineered rubber cover, green
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: Speciality hose for non-conductive applications, majorly catering to furnace coolant conveyane & low current leakage.
(less than 20 micro amp at 6 KV DC).
PROPERTIES: Heat Resistant | Non-Conductive tube and cover
Uniform Thickness | Industry Leader
APPLICABLE STANDARDS: Indo-Maksson Propietory
STANDARD COLOUR: Inner Tube - White | Outer Cover - Green
MARKING ON THE HOSE: Indo - Furnace- Carbon Free Hose LL
Heat Resistant I.D. W.P. India
CARBON FREE HOSE
TUBE: Specially engineered non conductive rubber, white
REINFORCEMENT: Subject to ID One or Multiple layers of Textile reinforced subjected to ID
COVER: Specilly engineered Nitrile rubber cover, green
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: Speciality hose for non conductive applications, majorly catering to furnace coolant conveyane & low current leakage.
PROPERTIES: Heat Resistant | Non-Conductive tube and cover
Uniform Thickness | Industry Leader
APPLICABLE STANDARDS: Indo-Maksson Propietory
STANDARD COLOUR: Inner Tube - White | Outer Cover - Green
MARKING ON THE HOSE: Indo - Furnace- Carbon Free Hose Heat
Resistant I.D. W.P. India

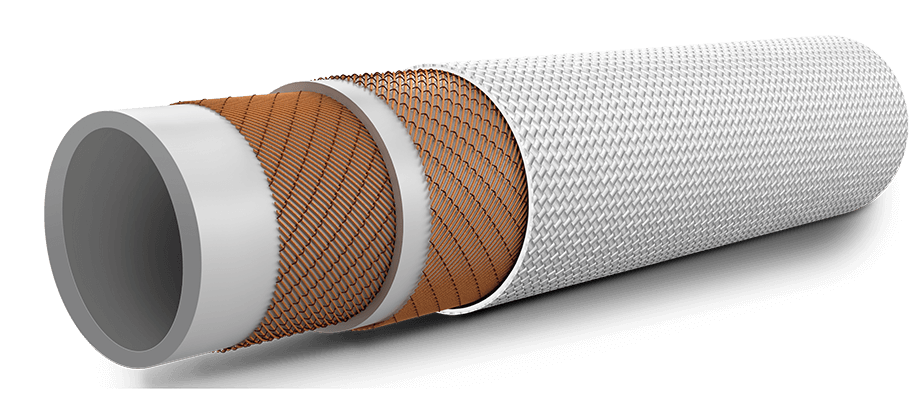

CARBON FREE HOSE (FIBER GLASS COVER)
TUBE: Specially engineered non conductive Nitrile rubber, white
REINFORCEMENT: High tensile synthetic tyre cord plies
COVER: Fiber glass cloth wrapped cover, whiite
TEMP RANGE: -40°C Approx to +100°C Approx +600°C Approx External Temperature
APPLICATIONS: Speciality hose for non conductive applications,
majorly catering to furnace coolant conveyane & low current leakage
(less than 20 micro amp at 6 KV DC).
PROPERTIES: Extreme Heat Resistant cover | Uniform Thickness
Non-Conductive tube and cover | Industry Leader
APPLICABLE STANDARDS: Indo-Maksson Propietory
STANDARD COLOUR: Inner Tube - White | Outer Cover - White fiber glass cloth
